1.实验环境
[oracle@db01 ~]$ cat /etc/redhat-release
Red Hat Enterprise Linux Server release 7.9 (Maipo)
[oracle@db01 ~]$ sqlplus -V
SQL*Plus: Release 19.0.0.0.0 - Production
Version 19.12.0.0.0
2.停止数据库以及监听
[oracle@db01 ~]$ lsnrctl stop
LSNRCTL for Linux: Version 19.0.0.0.0 - Production on 05-NOV-2021 20:49:59
Copyright (c) 1991, 2021, Oracle. All rights reserved.
Connecting to (DESCRIPTION=(ADDRESS=(PROTOCOL=TCP)(HOST=db01)(PORT=1521)))
The command completed successfully
[oracle@db01 ~]$ sqlplus / as sysdba
SQL*Plus: Release 19.0.0.0.0 - Production on Fri Nov 5 20:50:05 2021
Version 19.12.0.0.0
Copyright (c) 1982, 2021, Oracle. All rights reserved.
Connected to:
Oracle Database 19c Enterprise Edition Release 19.0.0.0.0 - Production
Version 19.12.0.0.0
SQL> shutdown immediate
Database closed.
Database dismounted.
ORACLE instance shut down.
SQL>
3.修改网卡IP从192.168.56.100修改为192.168.56.88
[root@db01 ~]# cd /etc/sysconfig/network-scripts/
[root@db01 network-scripts]# cat ifcfg-enp0s3
TYPE=Ethernet
PROXY_METHOD=none
BROWSER_ONLY=no
BOOTPROTO=static
DEFROUTE=yes
IPV4_FAILURE_FATAL=no
IPV6INIT=yes
IPV6_AUTOCONF=yes
IPV6_DEFROUTE=yes
IPV6_FAILURE_FATAL=no
IPV6_ADDR_GEN_MODE=stable-privacy
NAME=enp0s3
DEVICE=enp0s3
ONBOOT=yes
IPADDR=192.168.56.88
NETMASK=255.255.255.0
GATEWAY=192.168.56.1
4.重启网卡
[root@db01 network-scripts]# systemctl restart network.service
5.查看是否修改成功
[root@db01 ~]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: enp0s3: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
link/ether 08:00:27:57:39:0a brd ff:ff:ff:ff:ff:ff
inet 192.168.56.88/24 brd 192.168.56.255 scope global noprefixroute enp0s3
valid_lft forever preferred_lft forever
inet6 fe80::6ac2:72f:9232:585b/64 scope link tentative noprefixroute dadfailed
valid_lft forever preferred_lft forever
inet6 fe80::64bd:3d27:d1f2:6922/64 scope link noprefixroute
valid_lft forever preferred_lft forever
6.修改/etc/hosts
[root@db01 ~]# cat /etc/hosts
127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4
::1 localhost localhost.localdomain localhost6 localhost6.localdomain6
192.168.56.88 db01
7.修改tnsnames.ora,查看是否用了IP地址，如果使用到IP，则修改修改为新的IP地址。
[oracle@db01 ~]$ cd $ORACLE_HOME/network/admin
[oracle@db01 admin]$ cat tnsnames.ora
# tnsnames.ora Network Configuration File: /u01/app/oracle/product/19.3.0/dbhome_1/network/admin/tnsnames.ora
# Generated by Oracle configuration tools.
LISTENER_ORCL =
(ADDRESS = (PROTOCOL = TCP)(HOST = db01)(PORT = 1521))
ORCL =
(DESCRIPTION =
(ADDRESS = (PROTOCOL = TCP)(HOST = db01)(PORT = 1521))
(CONNECT_DATA =
(SERVER = DEDICATED)
(SERVICE_NAME = orcl)
)
)
8.启动监听
[oracle@db01 admin]$ lsnrctl start
LSNRCTL for Linux: Version 19.0.0.0.0 - Production on 05-NOV-2021 20:56:40
Copyright (c) 1991, 2021, Oracle. All rights reserved.
Starting /u01/app/oracle/product/19.3.0/dbhome_1/bin/tnslsnr: please wait...
TNSLSNR for Linux: Version 19.0.0.0.0 - Production
System parameter file is /u01/app/oracle/product/19.3.0/dbhome_1/network/admin/listener.ora
Log messages written to /u01/app/oracle/diag/tnslsnr/db01/listener/alert/log.xml
Listening on: (DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=db01)(PORT=1521)))
Listening on: (DESCRIPTION=(ADDRESS=(PROTOCOL=ipc)(KEY=EXTPROC1521)))
Connecting to (DESCRIPTION=(ADDRESS=(PROTOCOL=TCP)(HOST=db01)(PORT=1521)))
STATUS of the LISTENER
------------------------
Alias LISTENER
Version TNSLSNR for Linux: Version 19.0.0.0.0 - Production
Start Date 05-NOV-2021 20:56:40
Uptime 0 days 0 hr. 0 min. 0 sec
Trace Level off
Security ON: Local OS Authentication
SNMP OFF
Listener Parameter File /u01/app/oracle/product/19.3.0/dbhome_1/network/admin/listener.ora
Listener Log File /u01/app/oracle/diag/tnslsnr/db01/listener/alert/log.xml
Listening Endpoints Summary...
(DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=db01)(PORT=1521)))
(DESCRIPTION=(ADDRESS=(PROTOCOL=ipc)(KEY=EXTPROC1521)))
The listener supports no services
The command completed successfully
9.启动数据库
[oracle@db01 admin]$ sqlplus / as sysdba
SQL*Plus: Release 19.0.0.0.0 - Production on Fri Nov 5 20:57:17 2021
Version 19.12.0.0.0
Copyright (c) 1982, 2021, Oracle. All rights reserved.
Connected to an idle instance.
SQL> startup
ORACLE instance started.
Total System Global Area 2516581448 bytes
Fixed Size 9141320 bytes
Variable Size 1207959552 bytes
Database Buffers 1291845632 bytes
Redo Buffers 7634944 bytes
Database mounted.
Database opened.

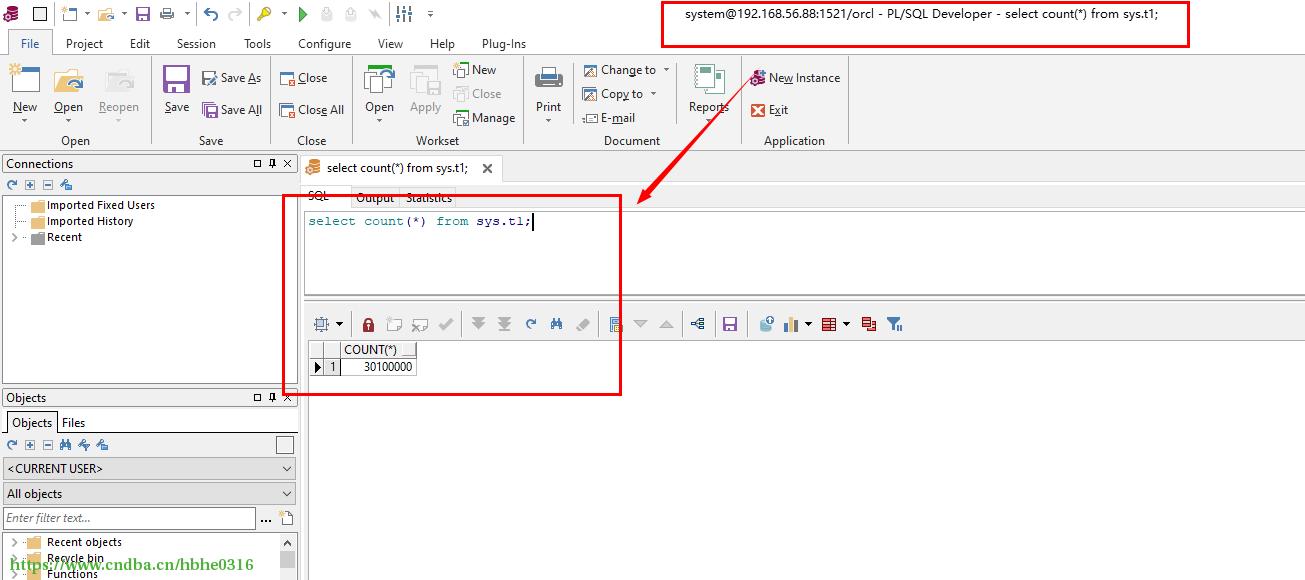

10.验证是否可以连接
