12c DG 切换保护模式 报ORA-16086: Redo data cannot be written to the standby redo log
作者：
leo
12c 切换保护模式时，切换至最大可用 PROTECTION_LEVEL 为 RESYNCHRONIZATION，
切换至最大保护时主库启动报错。
SQL> select protection_mode,database_role,protection_level,open_mode from v$database;
PROTECTION_MODE DATABASE_ROLE PROTECTION_LEVEL OPEN_MODE
-------------------- ---------------- -------------------- --------------------
MAXIMUM AVAILABILITY PHYSICAL STANDBY RESYNCHRONIZATION READ ONLY WITH APPLY
SQL> alter database set standby database to maximize protection;
Database altered.
SQL> alter database open;
alter database open
*
ERROR at line 1: ORA-03113: end-of-file on communication channel Process ID: 28863 Session ID: 1 Serial number: 45919Error 16086 cre ating standby archive log file at host 'pdbcndba_p'
*** 2017-06-20 19:41:26.385495 5634 krsh.c
LGWR: Attempting destination LOG_ARCHIVE_DEST_2 network reconnect (16086)
*** 2017-06-20 19:41:26.385595 5634 krsh.c
LGWR: Destination LOG_ARCHIVE_DEST_2 network reconnect abandoned
ORA-16086: Redo data cannot be written to the standby redo log
*** 2017-06-20 19:41:26.386015 5634 krsh.c
Error 16086 for archive log file 2 to 'pdbcndba_p'
*** 2017-06-20 19:41:26.386053 8506 krsi.c
krsi_dst_fail_caller: LAD:2 err:16086 force:0 blast:1--备库执行
alter database recover managed standby database cancel;
主库备库删除standby redo log日志组
SQL> alter database drop logfile group 6;
Database altered.
SQL> alter database drop logfile group 5;
Database altered.
SQL> alter database drop logfile group 4;
Database altered.
SQL>
在新主库新从库上建立3个standby redo log
alter database add standby logfile group 4 ('/oracle/app/oracle/data/powerdes/redo_dg_01.log') size 50m;
alter database add standby logfile group 5 ('/oracle/app/oracle/data/powerdes/redo_dg_12.log') size 50m;
alter database add standby logfile group 6 ('/oracle/app/oracle/data/powerdes/redo_dg_13.log') size 50m;
然后在新从库执行：执行redo应用：
alter database recover managed standby database disconnect from session;
alter system set standby_file_management='AUTO';
重新创建 standby log
alter database drop logfile group 4;
alter database drop logfile group 5;
alter database drop logfile group 6;
alter database drop logfile group 7;
alter database add standby logfile '/u01/app/oracle/oradata/cndba/stdredo01.log' size 200M;
alter database add standby logfile '/u01/app/oracle/oradata/cndba/stdredo02.log' size 200M;
alter database add standby logfile '/u01/app/oracle/oradata/cndba/stdredo03.log' size 200M;
alter database add standby logfile '/u01/app/oracle/oradata/cndba/stdredo04.log' size 200M;

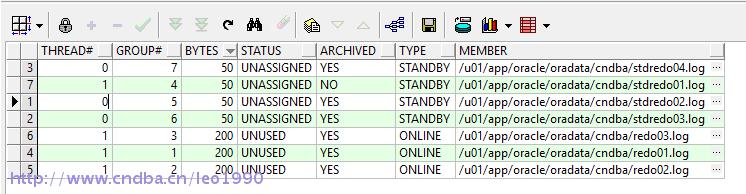

select decode(g.THREAD#, null, vs.THREAD#, g.THREAD#) THREAD#,
decode(g.GROUP#, null, vs.GROUP#, g.GROUP#) GROUP#,
decode(g.BYTES, null, vs.BYTES / 1024 / 1024, g.BYTES / 1024 / 1024) BYTES,
decode(g.STATUS, null, vs.STATUS, g.STATUS) STATUS,
decode(g.ARCHIVED, null, vs.ARCHIVED, g.ARCHIVED) ARCHIVED,
--decode(g.GROUP#,null,'STANDBY REDO','REDO') type,
gf.TYPE,
gf.MEMBER
from v$logfile gf
left join v$log g
on gf.GROUP# = g.GROUP#
left join v$standby_log vs
on gf.GROUP# = vs.GROUP#
order by 1, 2

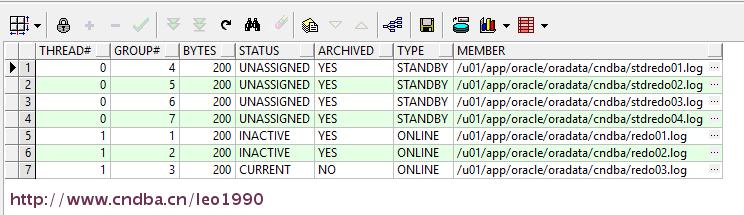

结果一样：
可以正常切换保护模式,出现上述问题的原因，主要是不细心，其实所有的操作步骤都是对的，在搭建DG 的时候没注意,埋了个坑。
SQL> select protection_mode,database_role,protection_level,open_mode from v$database;
PROTECTION_MODE DATABASE_ROLE PROTECTION_LEVEL OPEN_MODE
-------------------- ---------------- -------------------- --------------------
MAXIMUM PROTECTION PRIMARY MAXIMUM PROTECTION READ WRITE版权声明：本文为博主原创文章，未经博主允许不得转载。
