1 准备工作
1.1 配置本地yum
[cndba.cn]
name = CNDBA.CN YUM Server
baseurl=file:///cndba
gpgcheck=0
enabled=1
mount dev/sr0 /mnt
[[email protected] yum.repos.d]# yum clean all
Loaded plugins: langpacks, product-id, search-disabled-repos, subscription-manager
This system is not registered to Red Hat Subscription Management. You can use subscription-manager to register.
Cleaning repos: cndba.cn
Cleaning up everything安装常用软件：
yum -y install autoconf automake binutils-devel bison cpp dos2unix ftp gcc gcc-c++ lrzsz python-develyum -y install compat-db compat-db42 compat-db43 compat-gcc-34 compat-gcc-34-c++ compat-libstdc++-33 glibc-* glibc-*.i686 libXpm-*.i686 libXp.so.6 libXt.so.6 libXtst.so.6 libgcc_s.so.1 ksh libXp libaio-devel numactl numactl-devel unixODBC unixODBC-devel compat-libcap* 在sysctl.conf 中加入以下内容:
cat >> /etc/sysctl.conf <<EOF kernel.shmmni = 4096 kernel.sem = 250 32000 100 128 fs.file-max = 6815744 fs.aio-max-nr = 1048576 net.ipv4.ip_local_port_range = 9000 65500 net.core.rmem_default = 262144 net.core.rmem_max = 4194304 net.core.wmem_default = 262144 net.core.wmem_max = 1048576 EOF 如下2个参数直接使用默认值即可： kernel.shmmax = 68719476736 kernel.shmall = 4294967296 用root用户执行sysctl –p 使修改生效。
1.4 设置 Oracle 用户的 Shell 限制
在 /etc/security/limits.conf 中添加如下内容
cat >>/etc/security/limits.conf <<EOF
oracle soft nproc 2047
oracle hard nproc 16384
oracle soft nofile 1024
oracle hard nofile 65536
oracle soft stack 10240
oracle hard stack 10240
EOF
注：limits.conf 文件发生更改时，这些更改立即生效。但是，如果 Oracle 用户已登录，
则这些更改将在注销这些用户并重新登录之后生效。必须先完成此操作，然后再使用这些帐户进行安装。
1.5 设置PAM
确保加载了最新版本的 PAM，然后在 /etc/pam.d/login 文件中添加或编辑以下行：
cat >> /etc/pam.d/login <<EOF
session required pam_limits.so
EOF
1.6 设置ulimit
验证当前 ulimit，如果需要则增大。可以采用多种方式完成此操作，推荐方法是在 /etc/profile 中添加以下行：
cat >> /etc/profile <<EOF
if [ /$USER = "oracle" ] || [ /$USER = "grid" ]; then
if [ /$SHELL = "/bin/ksh" ]; then
ulimit -p 16384
ulimit -n 65536
else
ulimit -u 16384 -n 65536
fi
umask 022
fi
EOF
1.7 创建Oracle用户和组
groupadd oinstall
groupadd dba
groupadd oper
useradd -g oinstall -G dba,oper oracle
passwd oracle
1.8 创建目录
mkdir -p /u01/app/oracle/product/12.1.0/db_1
chown -R oracle.oinstall /u01
chmod -R 777 /u01
1.9 设置oracle用户的环境变量
修改/home/oracle/.bash_profile 文件添加如下内容：
TMP=/tmp; export TMP
TMPDIR=$TMP; export TMPDIR
ORACLE_BASE=/u01/app/oracle; export ORACLE_BASE
ORACLE_HOME=$ORACLE_BASE/product/12.1.0/db_1; export ORACLE_HOME
ORACLE_SID=cndba; export ORACLE_SID
SHLIB_PATH=$LD_LIBRARY_PATH;export SHLIB_PATH
NLS_LANG=American_America.zhs16gbk;export NLS_LANG
ORA_NLS10=$ORACLE_HOME/nls/data;export ORA_NLS10
TNS_ADMIN=$ORACLE_HOME/network/admin;export TNS_ADMIN
ORACLE_TERM=xterm; export ORACLE_TERM
PATH=/usr/sbin:$PATH; export PATH
PATH=$ORACLE_HOME/bin:$PATH; export PATH
LD_LIBRARY_PATH=$ORACLE_HOME/lib:/lib:/usr/lib; export LD_LIBRARY_PATH
CLASSPATH=$ORACLE_HOME/jre:$ORACLE_HOME/jlib:$ORACLE_HOME/rdbms/jlib; export CLASSPATH
Source 参数使生效：
[[email protected] ~]$ source ~/.bash_profile
2 开始安装
[[email protected] ~]$ cd /database/
[[email protected] database]$ ls
install response rpm runInstaller sshsetup stage welcome.html

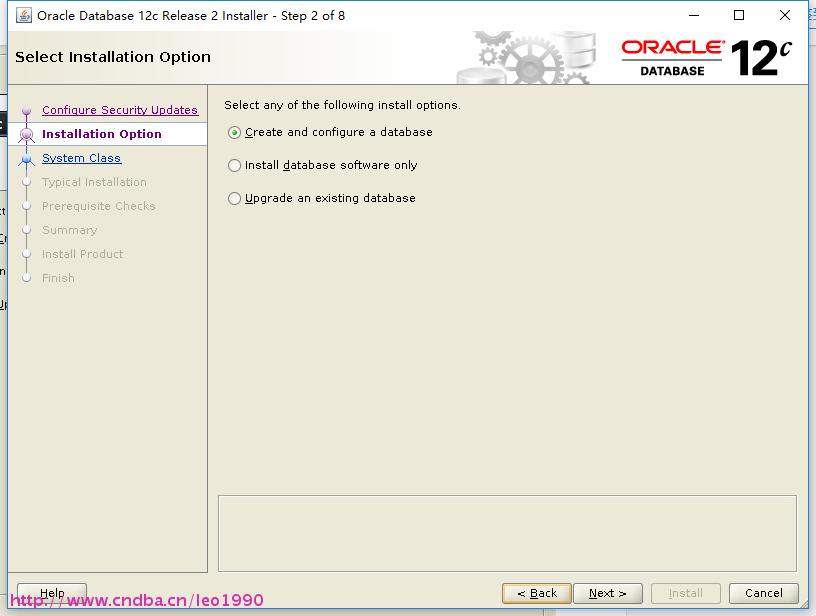

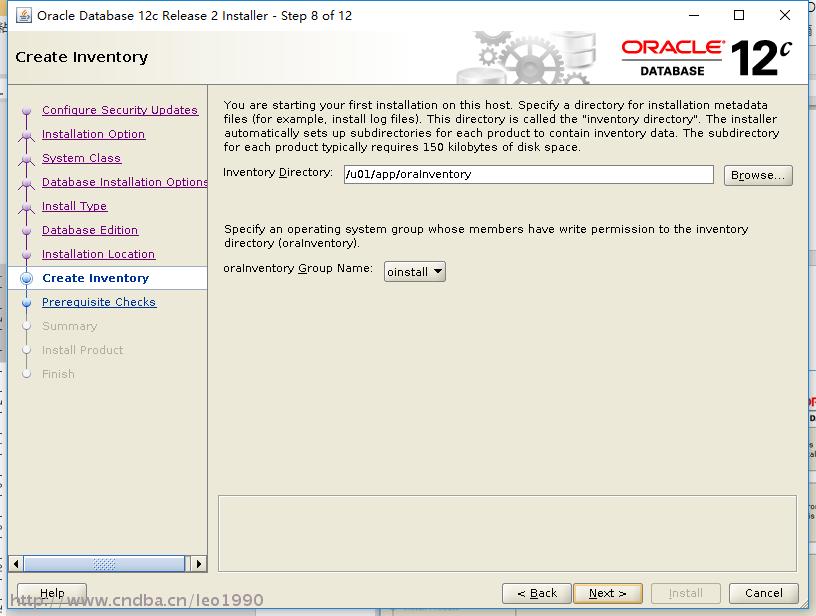

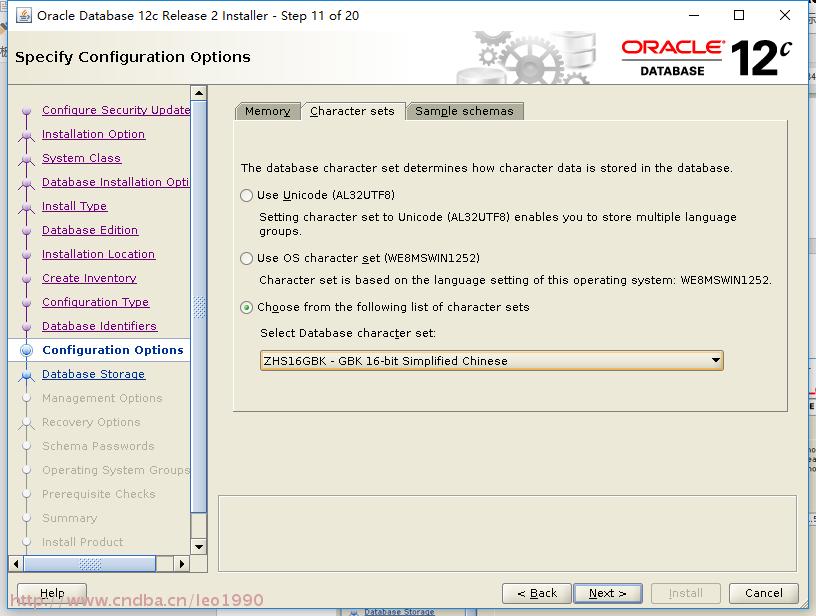

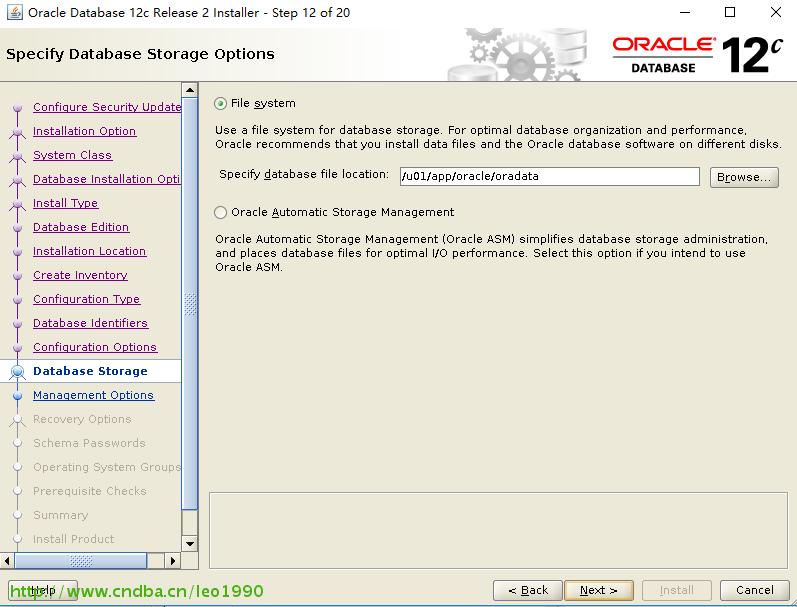

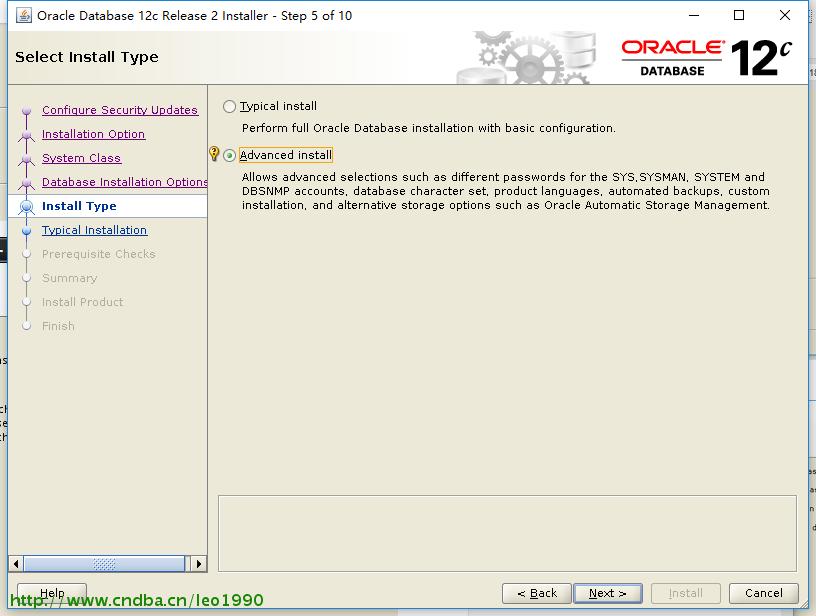

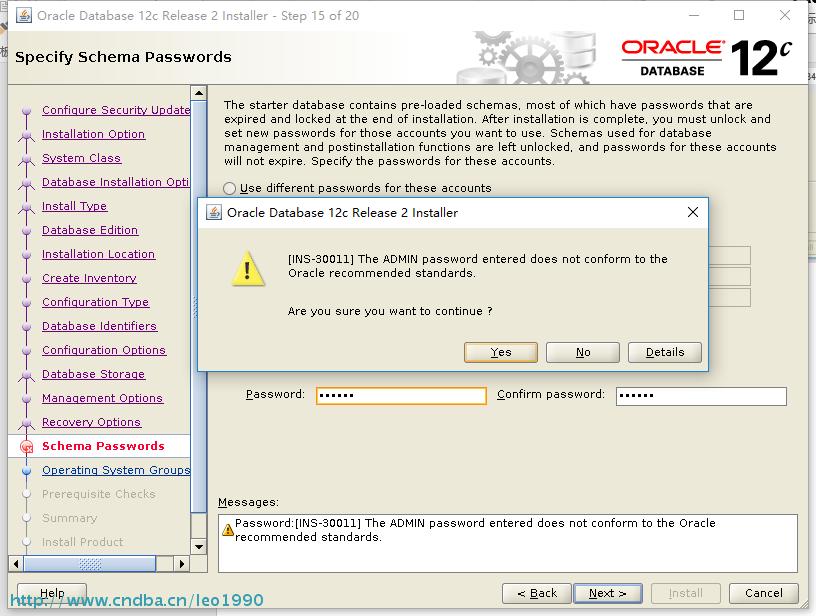

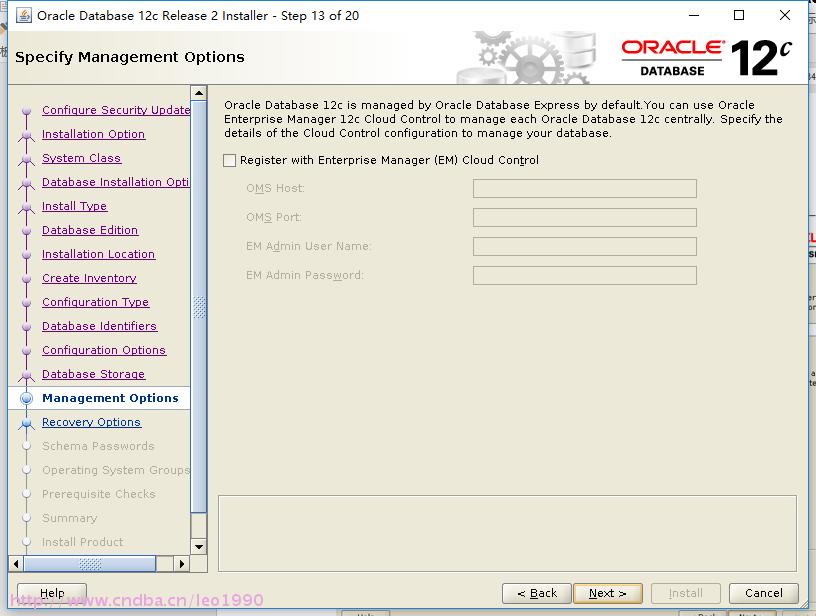

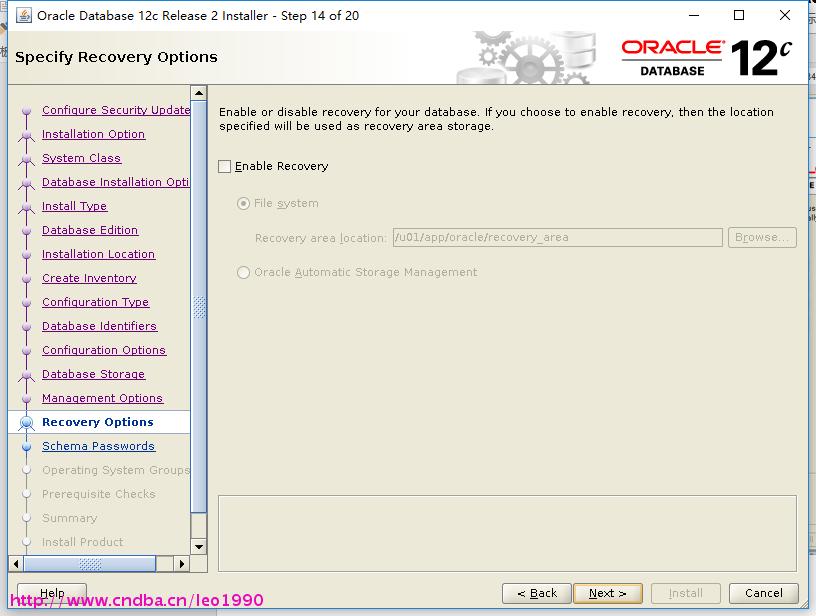

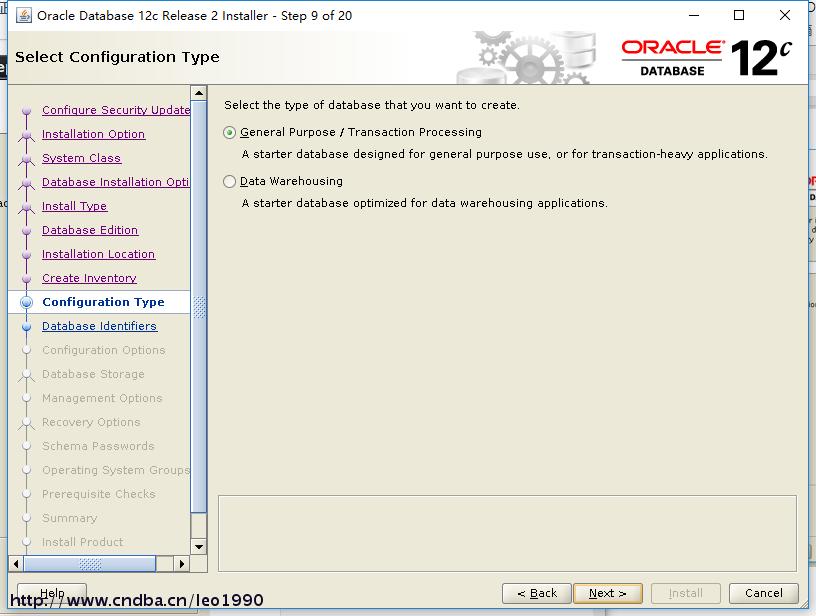

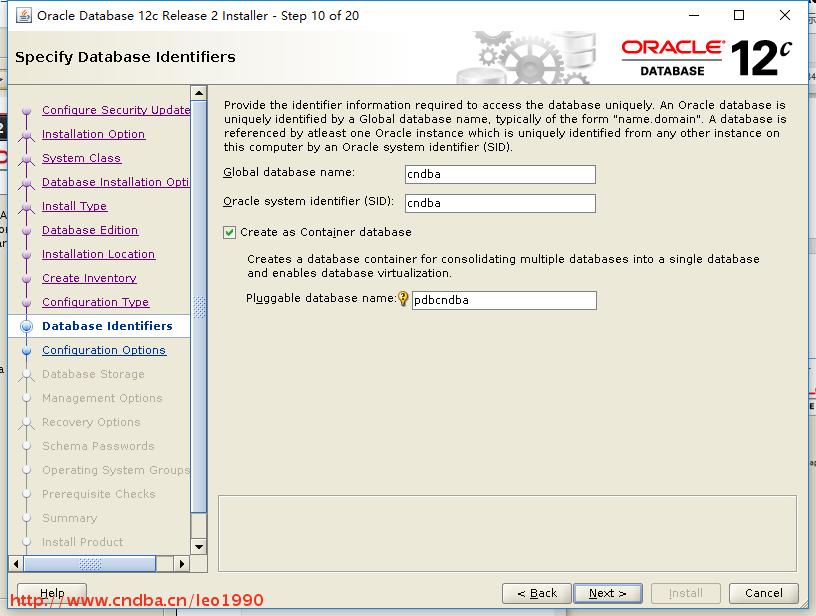

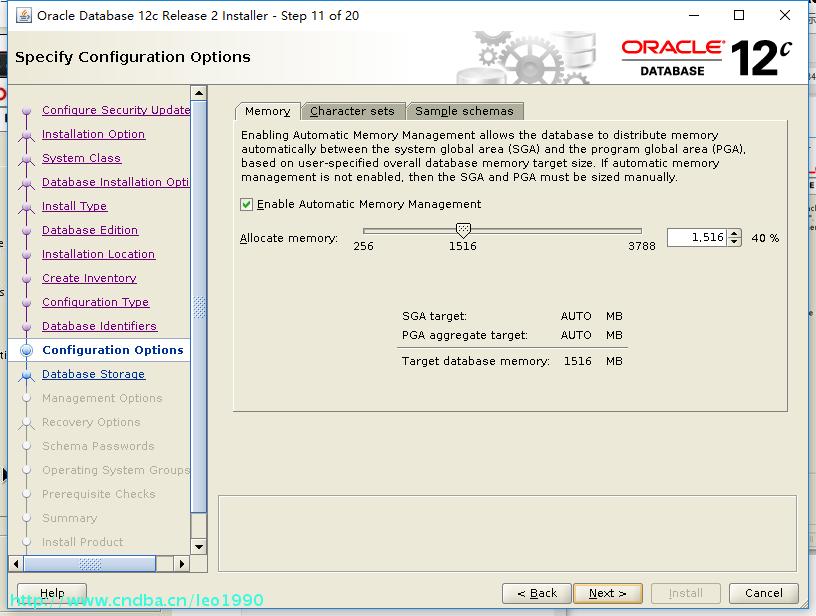

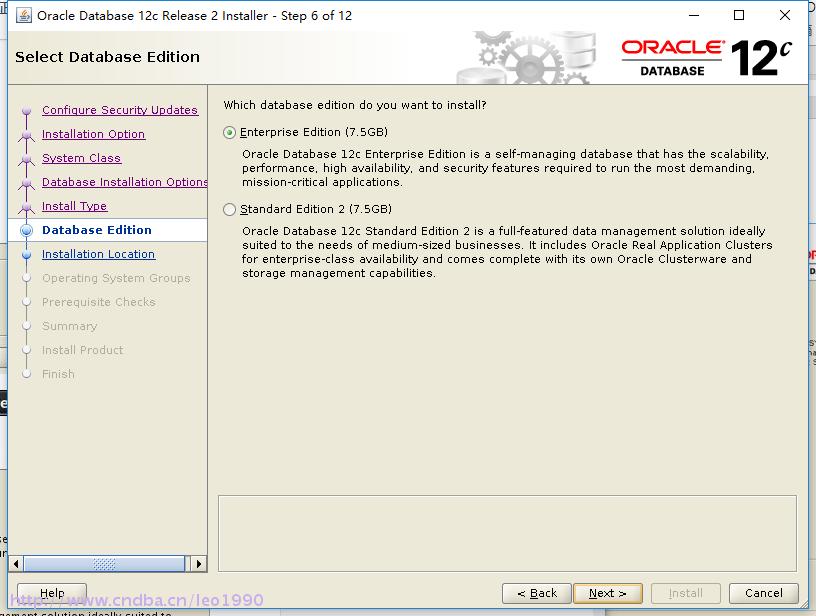

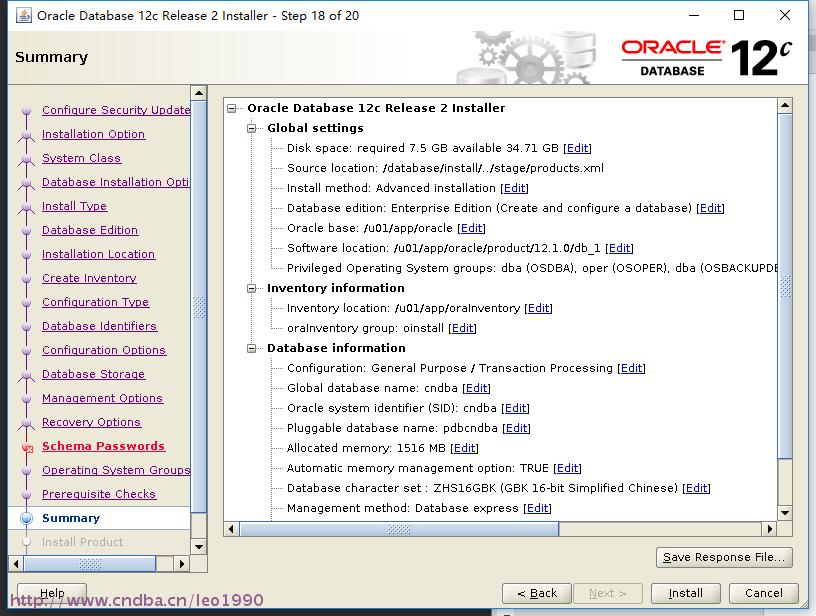

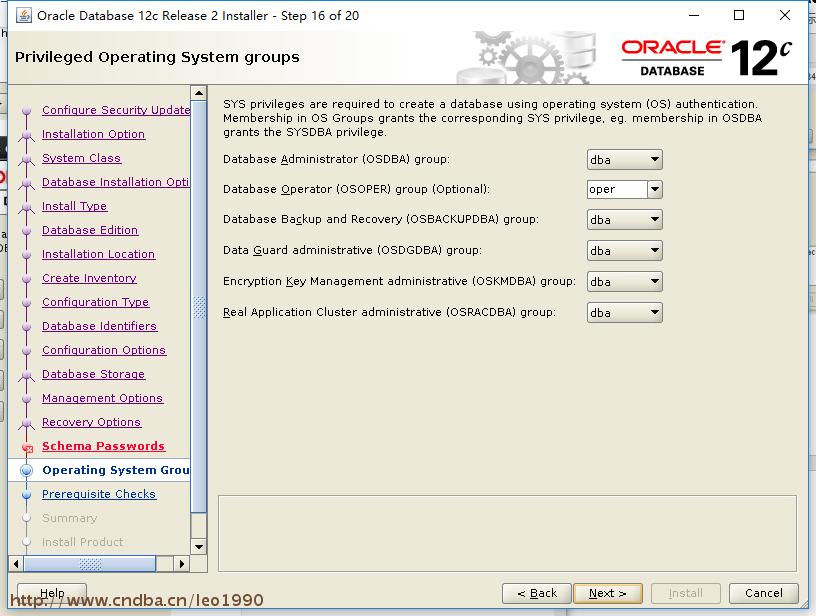

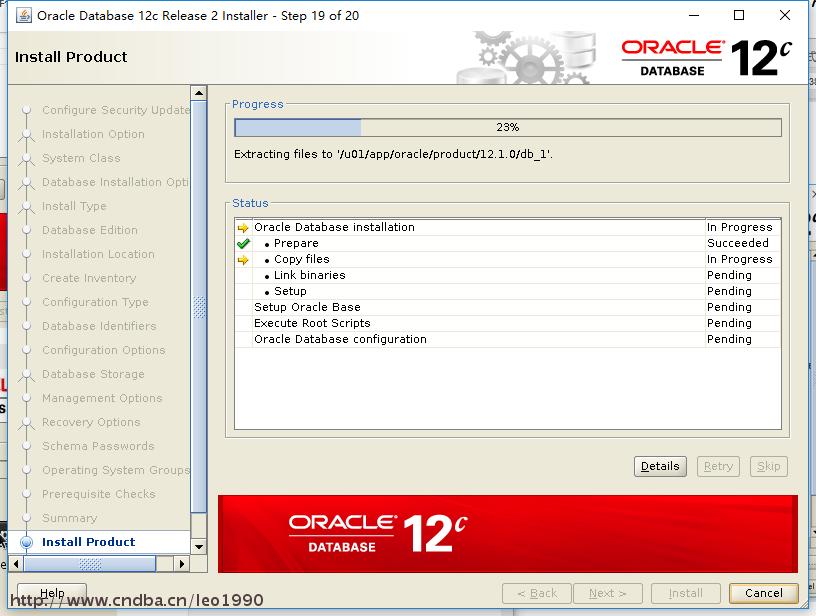

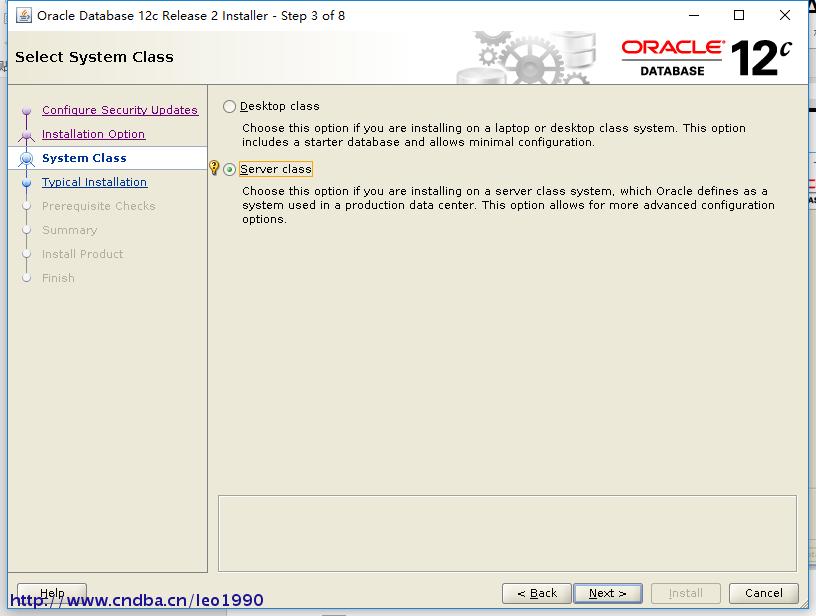

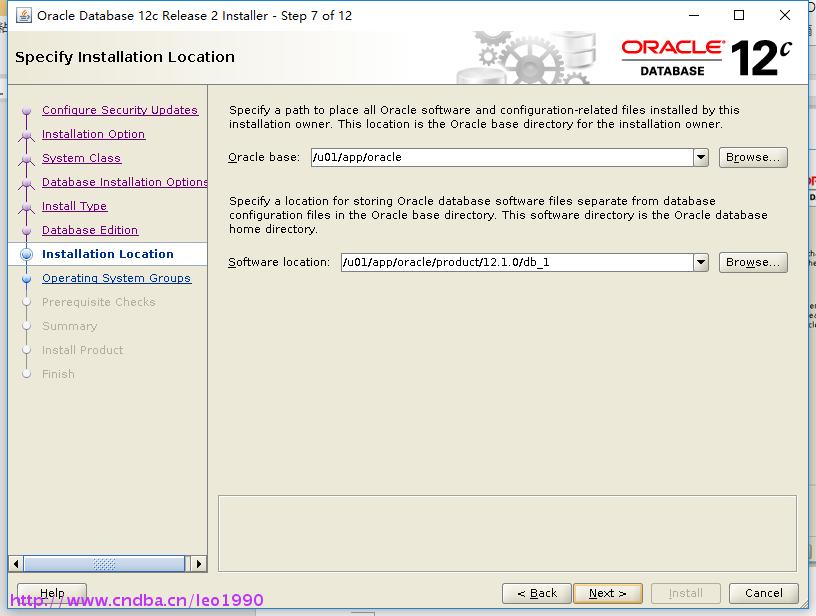

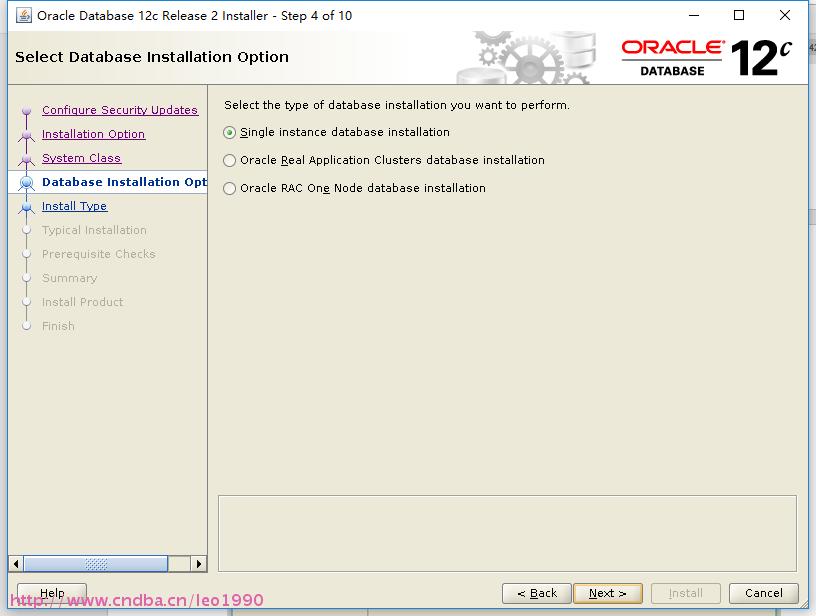

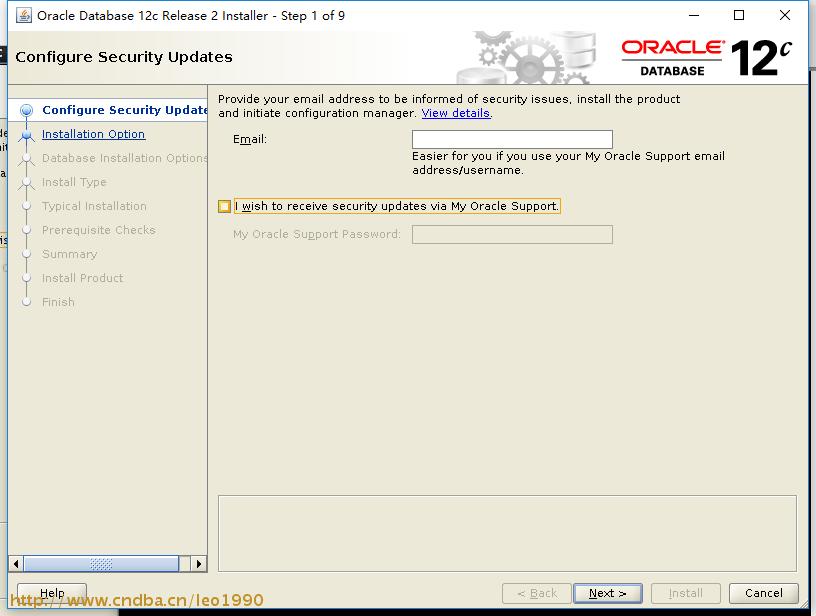

[[email protected] database]$ ./runInstaller

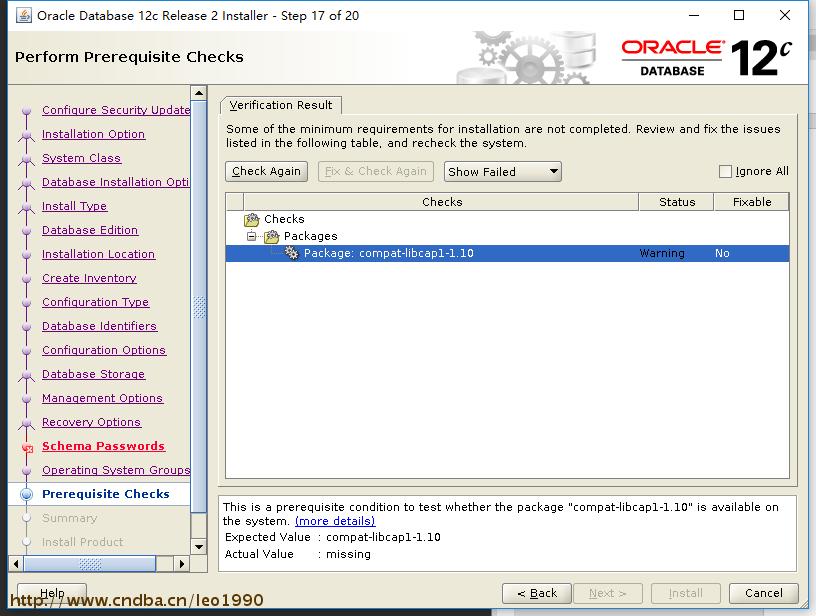

yum install compat-libcap*

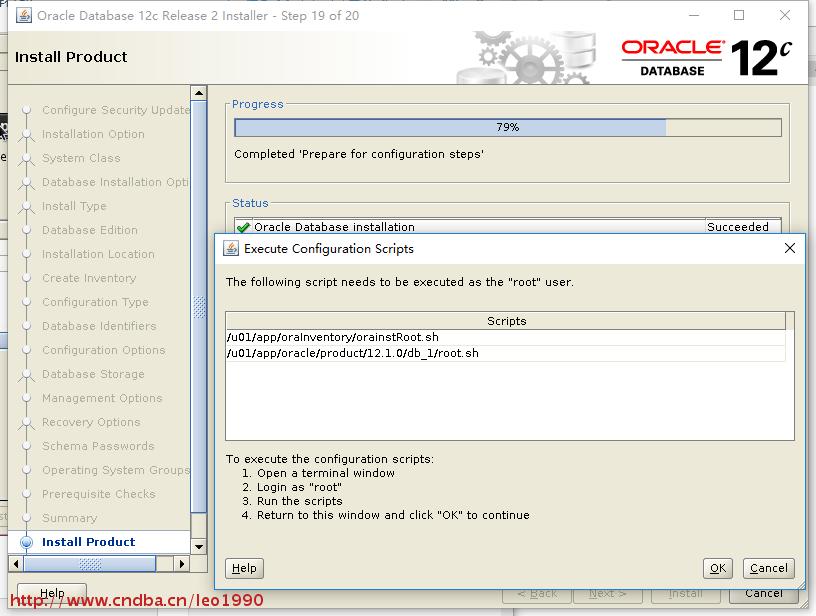

root 用户下 运行上面两个脚本
[root@dg1 yum.repos.d]# /u01/app/oraInventory/orainstRoot.sh
Changing permissions of /u01/app/oraInventory.
Adding read,write permissions for group.
Removing read,write,execute permissions for world.
Changing groupname of /u01/app/oraInventory to oinstall.
The execution of the script is complete.
[root@dg1 yum.repos.d]# /u01/app/oracle/product/12.1.0/db_1/root.sh
Performing root user operation.
The following environment variables are set as:
ORACLE_OWNER= oracle
ORACLE_HOME= /u01/app/oracle/product/12.1.0/db_1
Enter the full pathname of the local bin directory: [/usr/local/bin]:
Copying dbhome to /usr/local/bin ...
Copying oraenv to /usr/local/bin ...
Copying coraenv to /usr/local/bin ...
Creating /etc/oratab file...
Entries will be added to the /etc/oratab file as needed by
Database Configuration Assistant when a database is created
Finished running generic part of root script.
Now product-specific root actions will be performed.
Do you want to setup Oracle Trace File Analyzer (TFA) now ? yes|[no] :
yes
Installing Oracle Trace File Analyzer (TFA).
Log File: /u01/app/oracle/product/12.1.0/db_1/install/root_dg1_2017-05-25_14-42-53-472430239.log
Finished installing Oracle Trace File Analyzer (TFA)
3 查询数据库信息
[[email protected] ~]$ sqlplus /nolog
SQL*Plus: Release 12.2.0.1.0 Production on Thu May 25 15:21:28 2017
Copyright (c) 1982, 2016, Oracle. All rights reserved.
SQL> conn /as sysdba
Connected.
SQL> set line 140
SQL> select?*?from?v$version;
SP2-0734: unknown command beginning "select?*..." - rest of line ignored.
SQL> select * from v$version;
BANNER CON_ID
-------------------------------------------------------------------------------- ----------
Oracle Database 12c Enterprise Edition Release 12.2.0.1.0 - 64bit Production 0
PL/SQL Release 12.2.0.1.0 - Production 0
CORE 12.2.0.1.0 Production 0
TNS for Linux: Version 12.2.0.1.0 - Production 0
NLSRTL Version 12.2.0.1.0 - Production 0
SQL> SELECT CDB FROM V$DATABASE;
CDB
---
YES
SQL> set lines 120
SQL> col pdb_name for a40
SQL> col status for a40
SQL> select PDB_NAME,CON_UID,pdb_id,status from dba_pdbs;
PDB_NAME CON_UID PDB_ID STATUS
---------------------------------------- ---------- ---------- ----------------------------------------
PDBCNDBA 4271691857 3 NORMAL
PDB$SEED 3932609193 2 NORMAL
SQL> col name for a30
SQL> col open_mode for a50
SQL> select con_id,dbid,NAME,OPEN_MODE from v$pdbs;
CON_ID DBID NAME OPEN_MODE
---------- ---------- ------------------------------ --------------------------------------------------
2 3932609193 PDB$SEED READ ONLY
3 4271691857 PDBCNDBA READ WRITE
SQL> show con_name
CON_NAME
------------------------------
CDB$ROOT
SQL> alter session set container=pdbcndba;
Session altered.
SQL> show con_name
CON_NAME
------------------------------
PDBCNDBA
SQL> show con_name
CON_NAME
------------------------------
PDBCNDBA
